Bladez G400

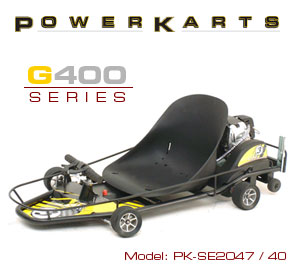

image from http://ebladez.com

The Bladez G400 is the more powerful of the two powerkarts designed by Bladez.


  • Motor: Tanaka 40 (Japanese)
  • Oil Mixture Ratio: 50:1
  • Top Speed: 20mph
  • Range: 18 miles
  • Clutch: 78mm centrifugal clutch
  • Transmission: gear box to chain drive
  • Tension System: manual
  • Brakes: Rear mechanical disc brakes
  • Wheels: magnesium 6 spoke
  • Tires: wide 120mm hard tires
  • Handlebars: welded T-bar
  • Frame: high tensile steel
  • Dry Weight: 37 lbs.


Controls Edit

Bladez G400 brake

The rear axle connected disc brake

Bladez G400 controls

The G400 handle bars

Brakes. The brake on the G400 is an aluminum hand lever which operates a single disc brake attached to the rear axle.

Throttle. The throttle of the G400 is a simple black plastic finger lever on the right side of the handlebars that operates a bowden cable.
