Goped S25

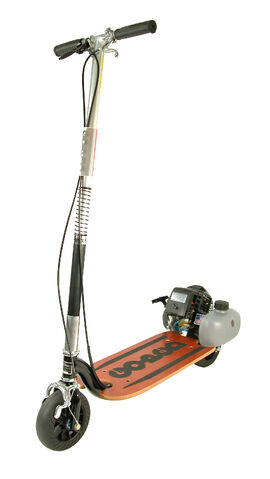

image from http://goped.com

The Goped S25 is very similar to the GeoSport except that the clutch is missing on this model. Otherwise, S25 and Goped GeoSport are the same scooter.

Technical Specifications

• Motor: Zenoah GZ25N14 (Japanese)
• Oil Mixture Ratio: 40:1
• Top Speed: 20 mph
• Range: 50 miles (200 mpg)
• Clutch: none
• Transmission: Spindle drive
• Tension System: ??
• Brakes: Front wheel caliper brakes
• Wheels: Plastic
• Tires: 6" hard tires
• Handlebars: welded T-bar
• Forks: dual steel
• Folding: Goped slide folding
• Deck: wood
• Frame: 4130 Chromyl
• Frame Protection: none
• Dry Weight: 22 lbs.

Controls

Brakes

Front caliper brake

Rear engine compression

Throttle

Lever throttle

Adjustments

As the tire wears down, the axle and tire must be adjusted so they are closer to the drive shaft. This is simply done with a quick-release mechanism found on all hard tired spindle driven Goped scooters.

Performance

The Zenoah GZ25N14 (aka Geo) engine is rated at 1.5 horsepower over the 1.2 hp. Zenoah G23LH (engine of the Goped Sport). With bolt-on modifications, Geos can be made quite fast. They archive more torque than the Zenoah G23LH as well. High performance parts are harder to come across because of the rarity of the GZ25N14cylinder design.

The Goped S25 (and all Geos) have a slightly larger diameter spindle (.685") than found on the Sport and Super Sport. This increased its top speed, which otherwise would be lacking, due to the weaker engine. However, all 2" spindles are interchangeable.

Reliability

You'll never have to replace

The geo engine as it is one of the most reliable ever on a goped scooter.
